Product Details
＋

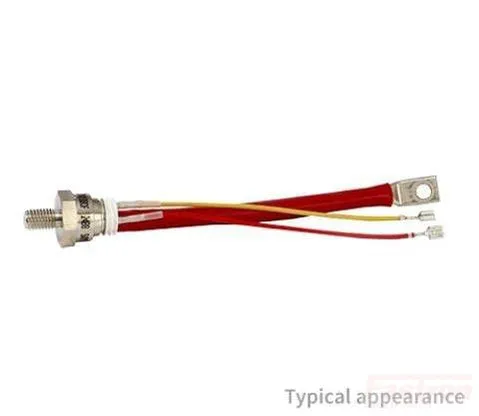

MSD254R18MK, Rectifier Diode 251Amp, 1800V, M12 Anode stud, PRESSURE CONTACT TECHNOLOGY
Features
- Full blocking capability over wide temperature range
- Hermetic metal case with glass insulator
- Threaded stud
- Can Replace Infineon D251N18B
Applications
- Power Supplies
- Uncontrolled Rectifiers
- Oil Cooled Circuits
- Battery Chargers
Specification
| MS Power Part Number | MSD254R18MK |
| Vrrm | 1800V |
| Diode Configuration | Anode Stud |
| IF(av) @ 130 Deg C | 250 Amp |
| IF(av) @ 129 Deg C | 255 Amp |
| Itsm | 6.3kA |
| VF(to) | 0.80V |
| Tj(max) | 180°C |
| rF | 0.50mΩ |
| Termination Style (Tail) | 8.4mm Round Lug |
| Termination Style (Stud) | M12 x 1.75 Stud Length 18mm |
| Tail Length to Stud | 210mm |
| R th(j-c) | 0.151 °C/W |
| R th(c-h) | 0.04 °C/W |
| Weight | 175g |
| Mounting Torque | 20 Nm |
| Factory Pack Qty | 6 |
| Country Of Origin | China |
| MS Power Headquarters | Germany |
Datasheet
