Product Details

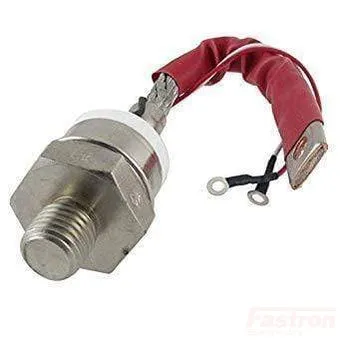

MS Power MST175S16M, Thyristor(SCR), 175Amp, 1600V, M16 x 1.5, Anode stud

Features

  • Full blocking capability over wide temperature range
  • Hermetic metal case with glass insulator
  • Threaded stud

Applications

  • Power Supplies
  • Controlled Rectifiers
  • AC Switch
  • DC Motor Control
    Specification
    MS Power Part Number MST175S16M
    Vrrm 1600V
    SCR Configuration Anode Stud
    IF(av) @ 100 Deg C 420 Amp
    IF(av) @ 125 Deg C 175 Amp
    Itsm 5.6 kA
    VF(to) 1.03V
    I(gt) 200mA
    Tj(max) 125°C
    rF 1.3mΩ
    Termination Style (Tail) 11mm Round Lug
    Termination Style (Stud) M16 x 1.5
    Tail Length to Stud 190mm
    R th(j-c) 0.14°C/W
    R th(c-h) 0.04°C/W
    Weight 320g
    Mounting Torque 2.5 - 2.77 Nm
    Factory Pack Qty 5
    Country Of Origin China
    MS Power Headquarters Germany



    Datasheet
    MST175S16M, Thyristor(SCR), 175Amp, 1600V, M16 x 1.5, Anode stud
